PS Resin for TV sets and recorders, food plates, thermal insulation of building industry

Product Description

Product Description

PS Resin for TV sets and recorders, food plates, thermal insulation of building industry

Product Introduction

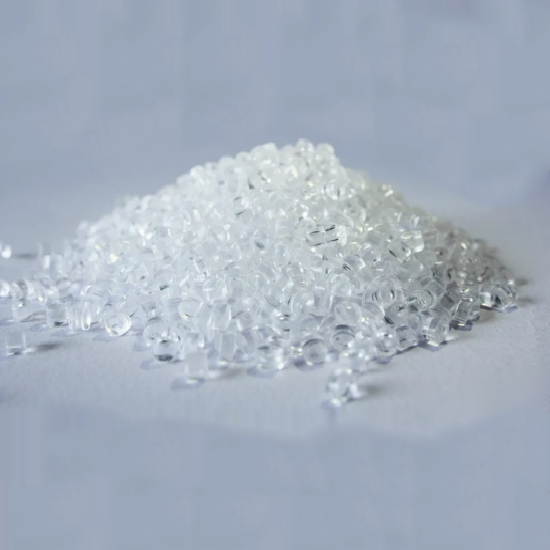

PS is a versatile thermoplastic known for its clarity, rigidity, and ease of processing. Available in GPPS (transparent, brittle) and HIPS (impact-modified, opaque), it is widely used in packaging, consumer goods, electronics, and disposable products due to its low cost, excellent electrical insulation, and moldability.

Available Grades

Product	Melt Index	Density	TDS

Note 1: Melt Index: measured at 190°C/2.16 kg, g/10 min

Note 2: Density measured at 23°C g/cm3

Basic Properties (ASTM Test Standards)

●Density: 1.04-1.06 g/cm³ (ASTMD792)

●Melt Flow Index (MFI): 8-20 g/10min (190°C/21.6kg)

●Color: White

●Tensile strength, Yield : 45-60 Mpa

●Elongation at Yield: 1.5-3.5%

●Flexural Modulus: 3000-3500Mpa

●Deflection Temperature at 0.45 MPa (100-108 psi)

Advanced Engineering Properties

●Temperature Range: 80°C (continuous use)

●Flame Rating: UL94 HB (3mm thickness)

●Notched Impact Strength: 1.5-2.5 KJ/m² (Izod, -20°C)

●Certifications: FDA 21 CFR 177.1520, ROHS, REACH

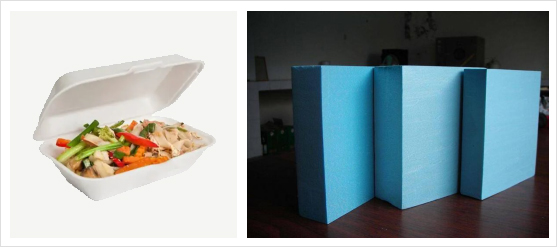

Product Application Diagram

ps02

Industry Applications

Sector	Typical Products	Case Reference (Link)

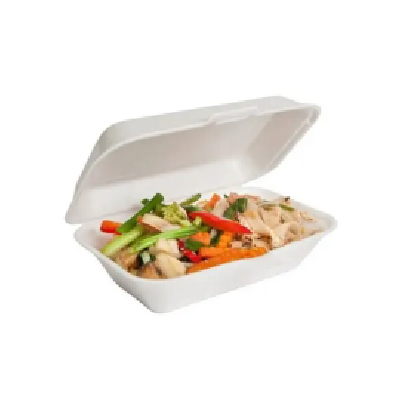

Food Packaging	Yogurt cups, fast food boxes	TotalEnergies - Crystal PS 1540
Electronic Device	TV frames, printer casings	Trinseo - MANGUM 3453

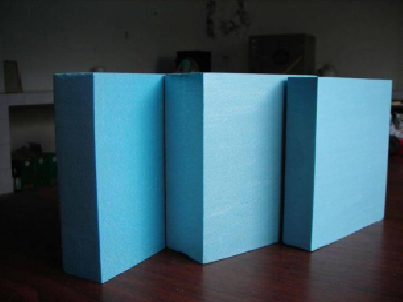

Structure Insulation	Exterior wall insulation board	INEOS - Styropor P303
Medical Supplies	Petri dishes and test tube racks	SABIC - SABIC PS 160
Daily Necessities	Hangers, combs	Americas Styrenics - EA3300

Compliance & Certifications

RoHS & REACH

UL 94

EN 13163

FDA 21 CFR 177.1520

EU 10/2011

Technical Documents

Document Type	Download Link	Version
TDS (Technical Data Sheet)
MSDS (Safety Data)
Food Grade Declaration	[FDA_Compliance_Cert.pdf]	2024
3rd-Party Test Report	[SGS_Impact_Test_Result.pdf]	2023
