IBC Tank HDPE Resin MFI 0.3 | UN 31HA1/Y Certified

Product Description

Product Description

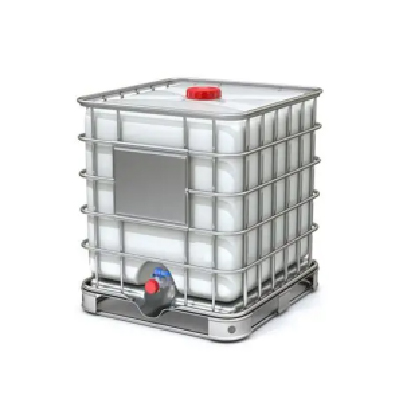

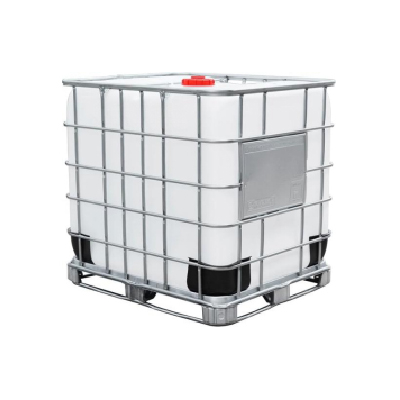

IBC Tank Grades for edible oil/syrup storage and transportation, liquid chemical storage.

Product Introduction

HDPE IBC Tank Grade features superior structural rigidity and impact resistance for UN-certified containers transporting hazardous liquids. Its exceptional environmental stress crack resistance (ESCR >1000 hrs) andchemical resistance make it ideal for IBC liner resin and structural components, ensuring leak-proof integrity with aggressive solvents, acids, and food ingredients under extreme transport/storage conditions.

Available Grades

Product	Melt Index	Density	TDS
Sinopec Qilu B445L	5	0.95

Note 1: Melt Index: measured at 190°C/21.6 kg, g/10 min

Note 2: Density measured at 23°C g/cm3

Basic Properties (ASTM Test Standards)

●Density: 0.95 g/cm³ (ASTMD792)

●Melt Flow Index (MFI): 5 g/10min (190°C/21.6kg)

●Color: Natural / Black / Blue

●Tensile strength, Yield : 26-32 Mpa

●Elongation at Yield: 800%

●Flexural Modulus: 850-1100 Mpa

●Deflection Temperature at 0.45 MPa (70-80 psi)

Advanced Engineering Properties

●Temperature Range: -40°C ~ 70°C (continuous use)

●Flame Rating: UL94 HB (3mm thickness)

●Notched Impact Strength: 150J/m² (Izod, 23°C)

●Certifications: FDA 21 CFR 177.1520, ROHS, REACH

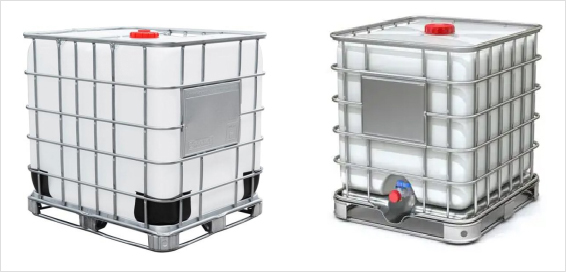

Product Application Diagram

hdpe0502

Industry Applications

Sector

Typical Products

Case Reference (Link)

Chemical Transportation

Acid/alkali/solvent transportation

Ravago Chemical IBCs with UN31HA1/Y

Food Industry

Edible oil/syrup/juice storage and transportation

Entec Polymers Food-Grade IBC Liners

Compliance & Certifications

ISO 9001:2015

REACH SVHC

FDA 21 CFR 177.1520

UN 31HA1/Y

NSF/ANSI 61

IMDG Code

Technical Documents

Document Type	Download Link	Version
TDS (Technical Data Sheet)
MSDS (Safety Data)
Food Grade Declaration	[FDA_Compliance_Cert.pdf]	2024
3rd-Party Test Report	[SGS_Impact_Test_Result.pdf]	2023
