PE100 HDPE Pipe Resin | MRS 10MPa ISO 4427

Product Description

Product Description

HDPE Pipe Grades, PE100 for pressure water pipes, gas pipelines and various industrial pipes

Product Introduction

HDPE Pipe Grade, PE100 features superior long-term hydrostatic strength and exceptional slow crack growth (SCG) resistance for pressure pipe systems. Certified to ISO 4427, it enables 50-year service life in demanding applications including potable water distribution, gas supply pipelines, and corrosive fluid transport, while its outstanding fusion weldability ensures joint integrity and installation efficiency.

Available Grades

Product	Melt Index	Density	TDS
Sinopec Sabic PN049-030-122	0.3	0.949
Basell 23050	0.2	0.9495
Wanhua Chemical 23050	0.24	0.949
Yanchang 23050	0.23	0.9498
SINOPEC Shanghai YGH-041	0.3	0.959
Dow Chemical 6006
PetroChina 100S
PetroChina Daqing 100S

Note 1: Melt Index: measured at 190°C/2.16 kg, g/10 min

Note 2: Density measured at 23°C g/cm3

Basic Properties (ASTM Test Standards)

●Density: 0.94 g/cm³ (ASTMD792)

●Melt Flow Index (MFI): 0.8-1.2 g/10min (190°C/21.6kg)

●Color: Natural / Transparent

●Tensile strength, Yield : 24 Mpa

●Elongation at Yield: 300%

●Flexural Modulus: 1100Mpa

●Deflection Temperature at 0.45 MPa (70-80 psi)

Advanced Engineering Properties

●Temperature Range: -50°C ~ 60°C (continuous use)

●Flame Rating: UL94 HB (3mm thickness)

●Notched Impact Strength: 25KJ/m² (Izod, 23°C)

●Certifications: FDA 21 CFR 177.1520, ROHS, REACH

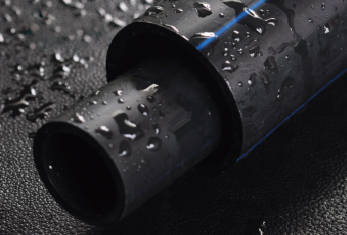

Product Application Diagram

hdpe0902

Industry Applications

Sector	Typical Products	Case Reference (Link)
Pressure Pipes	gas pipe, acid transportation pipeline in chemical plant, pressure water pipe	Borealis ISO 4437 Certified Gas Pipes

Compliance & Certifications

ISO 4437-2

ISO 4427

REACH SVHC

Technical Documents

Document Type	Download Link	Version
TDS (Technical Data Sheet)
MSDS (Safety Data)
Food Grade Declaration	[FDA_Compliance_Cert.pdf]	2024
3rd-Party Test Report	[SGS_Impact_Test_Result.pdf]	2023
