HDPE Conduit Resin for Fiber Optic

Product Description

Product Description

HDPE Cable Duct Grade for wire and cable jacketing base packaging

Product Introduction

HDPE Cable Conduit Grade provides superior crush resistance and high-impact strength for underground/above-ground utility protection. Engineered with UV stabilization, smooth inner walls, and halogen-free flame retardancy, it ensures effortless cable installation and long-term safety in power/telecom networks, industrial complexes, and renewable energy projects.

Available Grades

Product	Melt Index	Density	TDS
Qilu QHJ01	0.7	0.945
Qilu QHJ02	0.8	0.946

Note 1: Melt Index: measured at 190°C/2.16 kg, g/10 min

Note 2: Density measured at 23°C g/cm3

Basic Properties (ASTM Test Standards)

●Density: 0.945 g/cm³ (ASTMD792)

●Melt Flow Index (MFI): 0.3-0.8 g/10min (190°C/21.6kg)

●Color: White

●Tensile strength, Yield : 19 Mpa

●Elongation at Yield: 500%

●Flexural Modulus: 1100-1400Mpa

●Deflection Temperature at 0.45 MPa (70-80 psi)

Advanced Engineering Properties

●Temperature Range: 80°C (continuous use)

●Flame Rating: UL94 HB (3mm thickness)

●Notched Impact Strength: 30 KJ/m² (Izod, -20°C)

●Certifications: FDA 21 CFR 177.1520, ROHS, REACH

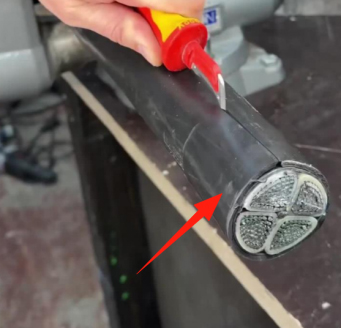

Product Application Diagram

hdpe1102

Industry Applications

Sector	Typical Products	Case Reference (Link)
Electricity Tunnel	High-voltage cable protection tube	HYOSUNG Tunnel Cable Duct System
5G Communication Pipeline	microtubule bundles	Borealis Daplen EF313 for Micro-Ducts
Rural Power Grid Transformation	Direct buried cable casing	Sinopec 埋地用HDPE电缆套管料

Compliance & Certifications

GB/T 19472.1

IEC 61386-21

RoHS & REACH

Technical Documents

Document Type	Download Link	Version
TDS (Technical Data Sheet)
MSDS (Safety Data)
Food Grade Declaration	[FDA_Compliance_Cert.pdf]	2024
3rd-Party Test Report	[SGS_Impact_Test_Result.pdf]	2023
