High Flow HDPE Resin MFI 20 | <0.5mm Medical Parts

Product Description

Product Description

HDPE Injection Molding, MFI 20 for beer bottles, beverage bottles, food boxes, vegetable boxes, egg boxes and other turnover boxes and plastic pallets

Product Introduction

HDPE Injection Molding Grade (MFI 20 g/10min) provides ultra-high flowability for rapid production of intricate, ultra-thin-walled components (<0.3mm) in high-cavitation molds. This high-MFI resin enables cycle time reductions up to 40% versus standard grades while maintaining critical impact resistance (>8 kJ/m² at 23°C) and ESCR performance (>300 hrs), making it ideal for disposable medical parts and technical components requiring precision and cost efficiency.

Available Grades

Product	Melt Index	Density	TDS
PetroChina Fushun 2911	20	0.960
Yanchang 8920	19.4	0.9550
Sinopec Sabic T50-2000	20	0.960

Note 1: Melt Index: measured at 190°C/2.16 kg, g/10 min

Note 2: Density measured at 23°C g/cm3

Basic Properties (ASTM Test Standards)

●Density: 0.96 g/cm³ (ASTMD792)

●Melt Flow Index (MFI): 20 g/10min (190°C/21.6kg)

●Color: Natural / Black /White

●Tensile strength, Yield : 23.4 Mpa

●Elongation at Yield: 114%

●Flexural Modulus: 1000-1300Mpa

●eflection Temperature at 0.45 MPa (70-80 psi)

Advanced Engineering Properties

●Temperature Range: -30°C ~ 90°C (continuous use)

●Flame Rating: UL94 HB (3mm thickness)

●Notched Impact Strength: 3.8KJ/m² (Izod, 23°C)

●Certifications: FDA 21 CFR 177.1520, ROHS, REACH

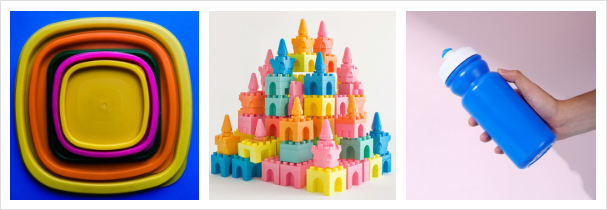

Product Application Diagram

hdpe0702

Industry Applications

Sector	Typical Products	Case Reference (Link)
Turnover Box	Logistics Pallets, beer bottles, beverage bottles, food boxes, vegetable boxes, egg boxes and other turnover boxes	Ravago Logistics Pallets
Thin-Wall Packaging	Disposable cutlery & food containers	Nexeo Plastics - Grade ExxonMobil™ HDPE HD7964.20
Medical Disposables	Syringe barrels & IV connectors	Distrupol - Grade LyondellBasell Hostalen GD 4765
Consumer Housewares	Storage bins & laundry baskets	Ravago - Grade *Borealis BorSafe™ HE3492-IM
Toys & Childcare	Doll parts & sippy cups	Bamberger Polymers - Grade TotalEnergies XSene™ XUB915
Industrial Caps & Closures	Chemical bottle caps	Kimteks - Grade SABIC® B6250LS

Compliance & Certifications

ISO 9001:2015

REACH SVHC

FDA 21 CFR 177.1520

Technical Documents

Document Type	Download Link	Version
TDS (Technical Data Sheet)
MSDS (Safety Data)
Food Grade Declaration	[FDA_Compliance_Cert.pdf]	2024
3rd-Party Test Report	[SGS_Impact_Test_Result.pdf]	2023
