PVC Resin for pipes and fitting, profiled doors, windows and packing sheets

Product Description

Product Description

PVC Resin for pipes and fitting, profiled doors, windows and packing sheets

Product Introduction

PVC is a versatile thermoplastic polymer renowned for its cost-effectiveness, inherent flame retardancy, and chemical resistance. With customizable rigidity via plasticizer content , it serves diverse applications from rigid construction profiles to flexible medical tubing, delivering excellent weatherability, electrical insulation , and compliance with global safety standards.

Available Grades

Product	Melt Index	Density	TDS
Jizhong SG-5		0.539

Note 1: Melt Index: measured at 190°C/2.16 kg, g/10 min

Note 2: Density measured at 23°C g/cm3

Basic Properties (ASTM Test Standards)

●Density: 1.38-1.45 g/cm³ (ASTMD792)

●Melt Flow Index (MFI): 0.5 g/10min (190°C/21.6kg)

●Color: White

●Tensile strength, Yield : 45-60 Mpa

●Elongation at Yield: 20-40%

●Flexural Modulus: 2400-3500MPA

●Deflection Temperature at 0.45 MPa (75-85 psi)

Advanced Engineering Properties

●Temperature Range: 80°C (continuous use)

●Flame Rating: UL94 HB (3mm thickness)

●Notched Impact Strength: 5-15 KJ/m² (Izod, 23°C)

●Certifications: FDA 21 CFR 177.1520, ROHS, REACH

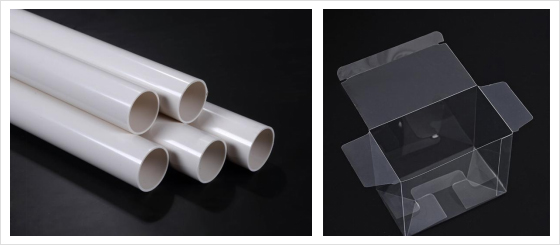

Product Application Diagram

pvc02

Industry Applications

Sector	Typical Products	Case Reference (Link)
Structure Profiles	Door and window frames, downspouts	Westlake Chemical - Vinnolit S3065
Medical Devices	Blood transfusion bags, dialysis tubing	OxyVinyls - Oxyclear 170
Wires and Cables	UL certified flame retardant sheath	Shin - Etsu - Kanevinyl S-1007
Floor Leather	Homogeneous core membrane	Tarkett - iD Revolution PVC Flooring
Transparent Packaging	Blister packaging sheets	Formosa Plastics- FP-647

Compliance & Certifications

RoHS & REACH

USP Class VI

IEC 60502-1

EN 649

FDA 21 CFR 177.1520

CPR EU 305/2011

Technical Documents

Document Type	Download Link	Version
TDS (Technical Data Sheet)
MSDS (Safety Data)
Food Grade Declaration	[FDA_Compliance_Cert.pdf]	2024
3rd-Party Test Report	[SGS_Impact_Test_Result.pdf]	2023
